觸控ˋ螢幕
振動回饋
穿戴裝置
|
型 號 Model Number |
RVN1004 |
|
品名 Product Name |
無刷振動馬達 Brushless Vibration Motor |
|
額定電壓 Rated Voltage (VDC) |
3.0 |
|
運轉電壓 Operating Voltage (VDC) |
2.8 ~ 3.3 |
|
額定電流 Rated Current (mA) |
70 (max:85) |
|
轉速 Rotation Speed (RPM) |
16,500±35% |
|

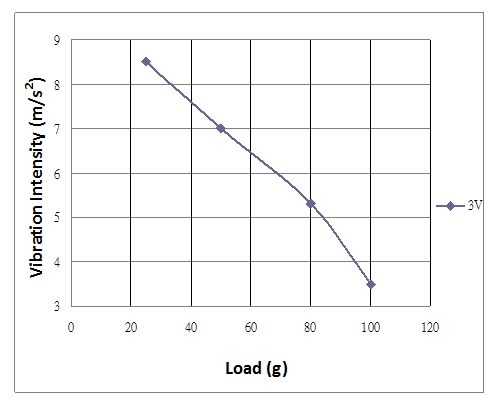

振動強度 Vibration Intensity (m/s2) |
3.5 ~ 8.5 MAX. |
|
負載重量 Load Mass (g) |
25 ~ 100 |
|
絕緣強度 Insulation Resistance |
10MEGA. Ω Min. at 500VDC (between housing and (+) terminal) |
|
耐壓強度 Dielectric Strength |
5mA Max. at 500VAC、60Hz、One Minute (between housing and (+) terminal) |
|
重量 Weight (g) |
1.13 |
|
認 證 Compliance |
CE、RoHS |
|
防水防塵 IP rating |
IP58 |
