首頁產品介紹微型側吹扇
產品介紹Products Introduction
適用產品

高亮度超薄微投

可攜式POS機

車用LED頭燈

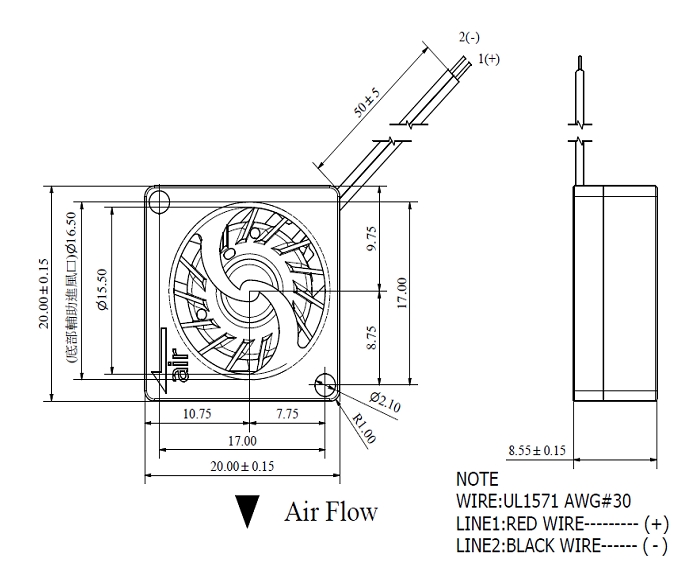

產品尺寸
產品規格

Model Number

RFB2008N

Product Name

微側流扇Micro Blower

額定電壓 Rated Voltage (VDC)

3.3

5.0

運轉電壓 Operating Voltage (VDC)

2.8 ~ 3.6

4.5 ~ 5.5

額定電流 Rated Current (mA)

85 (max:100)

125 (max:145)

Rotation Speed (RPM)

10,000 ± 15%

14,000 ± 15%

Air Flow (CFM)

0.63

0.89

Static Pressure (mmAq)

3.48

7.36

Noise (dB(A)) at1m

21.8

31.1

絕緣強度 Insulation Resistance

10MEGA. Ω Min. at 500VDC

(between frame and (+) terminal)

耐壓強度 Dielectric Strength

5mA Max. at 500VAC60HzOne Minute

(between frame and (+) terminal)

Life Expectancy (hours)

25,000 at45

Compliance

CERoHS

耐水耐塵 IP Rating

IP58

Weight (g)

2.9

保護 Protection

鎖住保護Lock rotor

自動重啟Auto Restart 極性保護 Polarity
